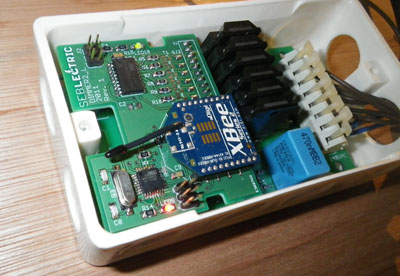

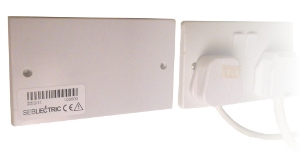

The wireless dimmer module (HADimmer2) is mains powered (220VAC, 50hz) and is capable of dimming up to 6 channels. More than one light can be connected to each channel if this is desired. The entire module is designed to be built inside a wall and covered with a blank faceplate to hide it from sight.

The module continuously waits for commands, it has no buttons so it will only operate when it is instructed wirelessly to perform an action.

For more information on how this dimmer is meant to be used in a complete system, please look at our Home Automation page.

You can read more about the Master Controlled system.

Master Version

• Master has extra features compared to the normal dimmer and switcher
• However, only ONE master per network!
• The master has a real time clock. This means it keeps track of time, with a few bonuses:
• It functions as a smart timer, you can program it from your computer to automatically activate lights and appliances at exact times, and set up recurring events to happen every day for example
• If you observe Daylight Savings Time (DST), then the master will automatically adjust the time when summer time is active, which means your timer events will continue to function at the correct time
• The master has a lot of memory on board, which allows it to store around 500 of these timer events
• The master can command other dimmers and switchers in the network. This will allow you to program the master to activate a light which is not physically attached to the master, but to another dimmer or switcher!

Technical Details

• 6 Channels
• Each channel can drive up to 400W
• Total power should not exceed 1000W
• Fuses for every channel
• Dimmer module has a range of 30meters indoors (however, multiple dimmers in a house will relay messages to each other thus further extending the range)
• Remotely/Wirelessly update firmware!
